Context

• A recent study published in Nature describes the creation of a portable optical atomic clock that can be deployed on ships.
• This new clock trades some degree of accuracy for increased portability and robustness, making it the most accurate timekeeping device currently available for maritime use.

Details

Background

• Atomic clocks are essential for various applications, including the Global Positioning System (GPS), telecommunications, and scientific research.
• Traditional atomic clocks, such as those based on cesium-133 atoms, provide exceptional accuracy but are typically bulky, power-intensive, and fragile.
• The emergence of optical atomic clocks, which use lasers and optical frequencies, offers even higher accuracy but has faced similar challenges regarding portability and robustness.

Construction and Design

Components and Specifications

• Rack Configuration: The clock system is housed in a 23U server rack, which includes:
  • Three independent optical clocks
  • A 1-U power supply
  • Control laptops for each clock
  • An uninterruptable power supply (UPS)
  • A measurement system
• Miniaturization:
  • Spectrometer: Redesigned to a volume of 2.5 liters.
  • Laser System: Constructed using optical fibers, reducing the volume to 1 liter.
  • Frequency Comb: Occupying 0.5 liters.
• Power and Weight:
  • Total volume: 35 liters (size of a large backpack).
  • Weight: Approximately 26 kg.
  • Power consumption: 85 W.
• Autonomous Control System: Software that initializes the clock, monitors environmental conditions, and ensures stable operation.

Testing and Performance

Laboratory Tests

• Conducted at the U.S. National Institute of Standards and Technology (NIST) in April 2022.
• Two prototypes, PICKLES and EPIC, operated autonomously for 34 days.
• Demonstrated superior short-term accuracy compared to NIST's hydrogen maser ST05.
• Exhibited 10x lower long-term drift compared to rubidium atomic clocks.

Maritime Deployment

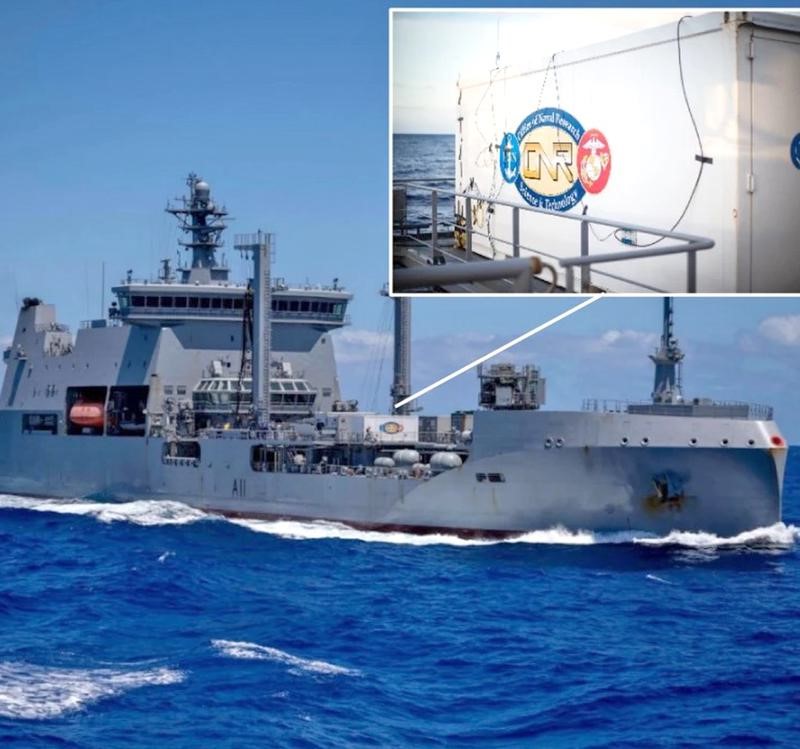

• Tested on the HMNZS Aotearoa during a three-week naval exercise.
• Deployed on a boat at Pearl Harbor, Hawaii.
• Clocks maintained stability despite ship motion, temperature fluctuations (2-3°C), and humidity changes (4-5%).

Advantages

• Traditional atomic clocks lose or gain a second over 300 million years.
• Laboratory optical atomic clocks lose or gain a second over 300 billion years.
• The new portable iodine-based optical clock loses or gains a second every 9.1 million years.

Practical Applications

• Navigation: Enhanced precision for maritime navigation.
• Communication: Improved synchronization for maritime communication systems.
• Scientific Research: Monitoring underwater seismic and volcanic activity.
• Space Exploration: Assisting in experiments testing theories of relativity and reducing satellite navigation costs.

Atomic Clocks

• Atomic clocks are precision timekeeping devices that use the vibrations of atoms to measure time with extreme accuracy.
• These clocks are critical in various fields, including GPS navigation, telecommunications, and scientific research.

History and Development

• The concept of atomic timekeeping dates back to the early 20th century, but the first practical atomic clock was developed in 1949 by the National Bureau of Standards (now NIST).
• This clock used ammonia molecules, but later designs switched to cesium and hydrogen atoms for greater accuracy.

Principles of Operation

• Atomic clocks operate based on the principle of atomic resonance.
• Here's a step-by-step breakdown of how they work:
• Atom Selection: Commonly used atoms include cesium-133, rubidium-87, and hydrogen.
• Energy States: Atoms have specific energy levels. When exposed to electromagnetic radiation, they can transition between these levels.
• Microwave Cavity: Atoms are placed in a microwave cavity where they are exposed to microwave radiation.
• Resonance Frequency: The microwave frequency is adjusted to match the natural resonance frequency of the atom. For cesium-133, this frequency is 9,192,631,770 Hz.
• Feedback Loop: The system uses a feedback loop to maintain the microwave frequency at the resonance frequency of the atom.
• Time Measurement: The stable frequency is used to count seconds with extreme precision.

Types of Atomic Clocks

• Cesium Atomic Clocks:
  • Most common type used in standard timekeeping.
  • Based on the transition between two hyperfine levels of the cesium-133 atom.
• Rubidium Atomic Clocks:
  • Smaller and less expensive than cesium clocks.
  • Used in applications where compact size is crucial.
• Hydrogen Masers:
  • Extremely stable but more complex and expensive.
  • Used in scientific research and deep space navigation.
• Optical Clocks:
  • Use optical transitions in ions or neutral atoms.
  • Potential to surpass microwave atomic clocks in accuracy.

Applications

• Global Positioning System (GPS): Atomic clocks provide the precise timing necessary for accurate location data.
• Telecommunications: Ensure synchronization of data transmission and reception.
• Scientific Research: Used in experiments requiring precise time measurement, such as measuring fundamental physical constants.
• International Timekeeping: Maintains Coordinated Universal Time (UTC).

Advances in Atomic Clocks

• Optical Lattice Clocks: Use strontium or ytterbium atoms and offer unprecedented precision.
• Quantum Clocks: Utilize quantum entanglement to further enhance accuracy.

Challenges

• Technical Complexity: Building and maintaining atomic clocks requires sophisticated technology and expertise.
• Cost: High-precision atomic clocks are expensive, limiting their widespread use.
• Environmental Factors: Factors like temperature, magnetic fields, and gravitational forces can affect accuracy.

Sources:

Hindu

PRACTICE QUESTION Q.  The development of portable optical atomic clocks represents a significant advancement in timekeeping technology, particularly for use at sea. Discuss. (150 Words)
