HYDROCARBONS EXTRACTION

Source: Hindu

Disclaimer: Copyright infringement not intended.

Context

• Over millennia, geological processes have heated and compressed organic matter within the Earth's crust, forming hydrocarbons.
• These hydrocarbons accumulate in subterranean rock formations, primarily as natural gas, coal, crude oil, and petroleum.

Details

Location of Hydrocarbons

• Hydrocarbons are typically found in underground reservoirs, formed when impermeable cap rocks overlay porous rock formations, preventing the hydrocarbons from migrating to the surface.

Sources:

• Natural Gas, Coal, Crude Oil, and Petroleum: Common forms of hydrocarbons found in underground reservoirs.
• Kerogen: Primary source of hydrocarbons, originating from organic matter. Three main sources:
  • Lacustrine (lake)
  • Marine
  • Terrestrial
• Different types of kerogen yield varying hydrocarbon compositions:
  • Lacustrine: Waxy oils
  • Marine: Oil and gas
  • Terrestrial: Light oils, gas, and coal

Petroleum Geology and Exploration

• Tools and Techniques: Petroleum geologists use various methods to assess underground rock formations, including analyzing porosity and permeability.
• Source Rock: The rock containing kerogen is called the source rock. Petroleum geologists study its characteristics to evaluate its hydrocarbon-producing potential.
• Exploration Activities: Petroleum geologists conduct modeling based on observational data and undertake exploration drilling to estimate the quantity and quality of hydrocarbons present.

Accessing Hydrocarbons

• Creating Production Wells:
  • Drilling and reservoir engineers create production wells strategically located to maximize drainage from the reservoir.
  • Drilling machines are used to create the well, consisting of drill pipe, drill collars, and a drill bit.
• Casing and Cementing:
  • Steel casings narrower than the hole are lowered into the well and surrounded by cement slurry to protect against cave-ins and prevent fluid intrusion.
  • Drilling fluid, circulated around the drill bit, aids in cooling and removing rock cuttings.
• Blowout Prevention: Mechanical valves called blowout preventers are used to control the pressure of the drilling fluid and prevent hydrocarbons from erupting to the surface uncontrollably.
• Mud-Logging: The process of recording rock cuttings by depth and studying their properties helps in assessing the geological formations encountered during drilling.
• Drilling Operations: Drilling rigs, equipped with generators and batteries, facilitate the drilling process, including extending the length of the drill pipe as needed.

Extracting Hydrocarbons

• Completion Stage: Once the production well is drilled, the completion stage involves removing the drill string and perforating the casing to allow hydrocarbons to flow into the well.
• Production Stage:

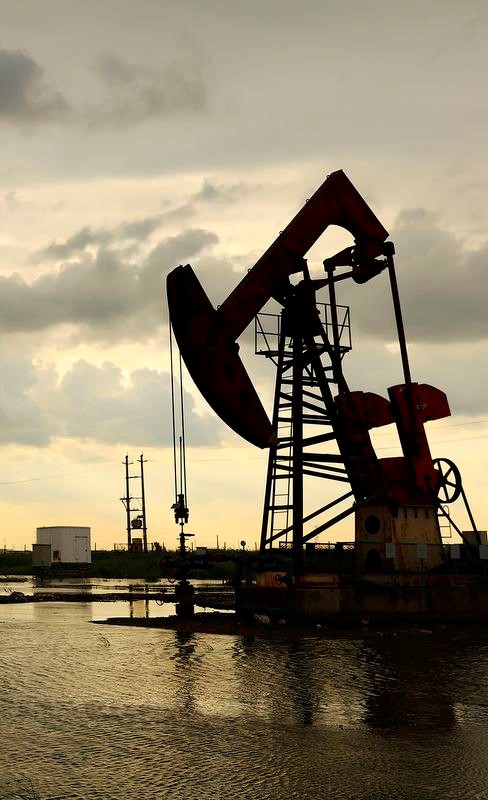

  • Valves at the wellhead control the outflow of hydrocarbons. Pump jacks may be used to lift hydrocarbons from wells with low pressure differentials.
  • Workovers may be performed to optimize production from existing wells.
• Production Phases:
  • Primary Phase: Relies on natural processes such as pressure differentials.
  • Secondary Phase: Involves artificial interventions to maintain pressure differentials, such as water injection.
  • Tertiary Phase: Uses enhanced recovery methods like steam injection to extract remaining hydrocarbons.

Depletion and Decommissioning

• Well Depletion: Extraction rates determine when a well may be considered depleted, based on economic viability.
• Well Plugging: Abandoned wells are plugged to prevent hydrocarbon and gas leaks into the surroundings, either temporarily or permanently.
• Decommissioning:
  • Decommissioning involves permanently sealing a well, often due to economic or environmental considerations.
  • Improperly abandoned wells can contribute to methane emissions and environmental pollution.

Environmental Impact

• Improperly abandoned wells and methane emissions during extraction and production contribute to environmental pollution and climate change.
• Mitigating these impacts requires proper well management, decommissioning practices, and transitioning to cleaner energy sources.

About Hydrocarbons

• In organic chemistry, a hydrocarbon is an organic compound consisting entirely of hydrogen and carbon.
• Hydrocarbons are examples of group 14 hydrides.
• In the fossil fuel industries, hydrocarbon refers to naturally occurring petroleum, natural gas and coal, or their hydrocarbon derivatives and purified forms.
• Combustion of hydrocarbons is the main source of the world's energy.
• Petroleum is the dominant raw-material source for organic commodity chemicals such as solvents and polymers.
• Most anthropogenic (human-generated) emissions of greenhouse gases are either carbon dioxide released by the burning of fossil fuels, or methane released from the handling of natural gas or from agriculture.

Classification of Hydrocarbons:

• They're classified based on their structure into aliphatic and aromatic hydrocarbons.
• Aliphatic:
  • Saturated Hydrocarbons (Alkanes):
    • Have single bonds between carbon atoms.
    • General formula: CnH2n+2.
    • Examples: Methane (CH4), Ethane (C2H6), Propane (C3H8), Butane (C4H10), etc.
  • Unsaturated Hydrocarbons:
    • Have at least one double or triple bond between carbon atoms.
    • Subcategories:
      • Alkenes (or Olefins): Contain one or more carbon-carbon double bonds. General formula: CnH2n.
      • Alkynes: Contain one or more carbon-carbon triple bonds. General formula: CnH2n-2.
    • Examples: Ethene (C2H4), Propene (C3H6), Ethyne (C2H2), etc.
  • Aromatic:
  • Structure: Contain one or more benzene rings.
  • Properties: Often more stable and less reactive than aliphatic hydrocarbons.
  • Examples: Benzene, toluene, xylene, etc.
  • Uses: Widely used as solvents, starting materials for synthesis, and as additives.

Isomerism in Hydrocarbons:

• Hydrocarbons exhibit structural isomerism, where compounds with the same molecular formula have different structural arrangements.
• Types of isomerism:
  • Chain Isomerism: Different arrangements of the carbon chain.
  • Position Isomerism: Different positions of functional groups or double bonds.
  • Functional Group Isomerism: Different functional groups.
  • Tautomeric Isomerism: Rapid interconversion of functional groups through a chemical reaction.
• Geometric Isomers (Cis-Trans Isomerism): Occur in alkenes and cycloalkanes due to restricted rotation around double bonds or in cyclic structures.
• Stereoisomers (Optical Isomers): Occur in compounds with chiral centers, like some alkenes and cyclic compounds.

Properties of Hydrocarbons:

• Physical properties:
• State: They occur in a diverse range of molecular structures and phases: they can be gases (such as methane and propane), liquids (such as hexane and benzene), low melting solids (such as paraffin wax and naphthalene) or polymers (such as polyethylene and polystyrene).
  • Boiling Point: Increases with increasing molecular weight.
  • Solubility: Generally insoluble in water but soluble in non-polar solvents.
  • Hydrocarbons are generally colourless and hydrophobic; their odor is usually faint, and may be similar to that of gasoline or lighter fluid.
• Chemical properties:
  • Combustion: Hydrocarbons readily burn in the presence of oxygen to produce carbon dioxide and water, releasing energy.
  • Halogenation: Alkanes undergo substitution reactions with halogens (chlorine, bromine) in the presence of sunlight or heat.
  • Substitution Reactions: Common in aromatic hydrocarbons, where hydrogen atoms are replaced by other functional groups.
  • Addition Reactions: Typical in unsaturated hydrocarbons like alkenes and alkynes, where double or triple bonds are broken to form new bonds.

Uses and Applications of Hydrocarbons:

• Fossil Fuels: Hydrocarbons are the primary components of fossil fuels such as petroleum, natural gas, and coal, used for energy production, transportation, and heating.
• Petrochemical Industry: Hydrocarbons serve as feedstocks for the production of various chemicals, plastics, and synthetic materials.
• Organic Synthesis: Hydrocarbons are essential in organic chemistry for the synthesis of pharmaceuticals, polymers, dyes, and other organic compounds.

Environmental Impact:

• Combustion of hydrocarbons releases carbon dioxide and other pollutants, contributing to air pollution and climate change.
• Spills and leaks of hydrocarbons can contaminate soil, water bodies, and ecosystems, posing environmental hazards.
• Some hydrocarbons are carcinogenic or toxic, posing risks to human health and the environment.
