‘NAVigation with the Indian Constellation’ (NavIC),

Description

Disclaimer: Copyright infringement not intended.

Context

To promote the use of ‘NAVigation with the Indian Constellation’ (NavIC), the Indian version of GPS, the Indian Space Research Organisation (ISRO) will introduce the L1 frequency in all its future satellites.

Details

The seven satellites in the NavIC constellation so far use two frequencies for providing positioning data — the L5 and S bands. The new satellites NVS-01 onwards, meant to replace these satellites, will also have L1 frequency.
The L1 is the oldest and most established GPS signals, which even the less sophisticated, civilian-use devices such as smartwatches are capable of receiving. Thus, with this band, the use of NavIC in civilian-use gadgets can go up.

NaviC

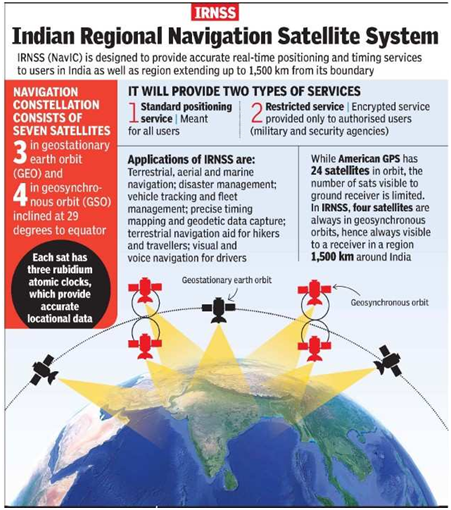

NavIC (Navigation with Indian Constellation) is an autonomous regional satellite navigation system established and maintained by ISRO.

Coverage

It covers India and a region extending up to 1,500 km beyond Indian mainland (primary coverage area) with plans of extension.
An extended service area lies between the primary service area and a rectangle area enclosed by the 30th parallel south to the 50th parallel north and the 30th meridian east to the 130th meridian east.

Satellites

The system currently consists of a constellation of eight satellites.
Three satellites in constellation are located in geostationary orbit (GEO) and four in inclined geosynchronous orbit (IGSO).

Accuracy

The system is intended to provide an absolute position accuracy of better than 10 metres throughout Indian landmass and better than 20 metres in the Indian Ocean.
In short, it provides position accuracy better than 20 m and timing accuracy better than 50 nanoseconds(20).

Applications

NavIC will provide two levels of service, the "standard positioning service", which will be open for civilian use, and a "restricted service" (an encrypted one) for authorised users (including the military).
NavIC based applications are being used in various civilian sectors, including, transport, map applications, and timekeeping.
NavIC based trackers are compulsory on commercial vehicles in India.
Today major mobile chipset manufacturers like Qualcomm, MediaTek and Broadcom already support NavIC across various chipset platforms.
A few mobile handsets have been released which can be enabled to receive NavlC.

Examples Redmi Note 9 series from Xiaomi, the Realme 6 series, the OnePlus Nord, etc.

GPS VS NAVIC

The GPS, has a position accuracy of 20–30 m.
Unlike GPS which is dependent only on L-band, NavIC has dual frequency (S and L band frequencies).
When low frequency signal travels through atmosphere, its velocity changes due to atmospheric disturbances.
US banks on atmospheric model to assess frequency error and it has to update this model from time to time to assess the exact error.
In India's case, the actual delay is assessed by measuring the difference in delay of dual frequency (S and L bands).
Therefore, NavIC is not dependent on any model to find the frequency error and is more accurate than GPS.
The main difference is the serviceable area covered by these systems. GPS caters to users across the globe and its satellites circle the earth twice a day, while NavIC is currently for use in India and adjacent areas.

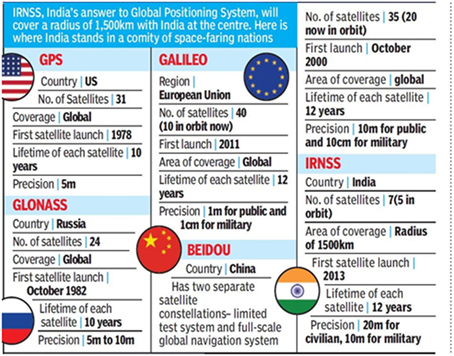

Like GPS, there are three more navigation systems that have global coverage - Galileo from the European Union, Russia-owned GLONASS and China's Beidou. QZSS, operated by Japan, is another regional navigation system covering Asia-Oceania region, with a focus on Japan.

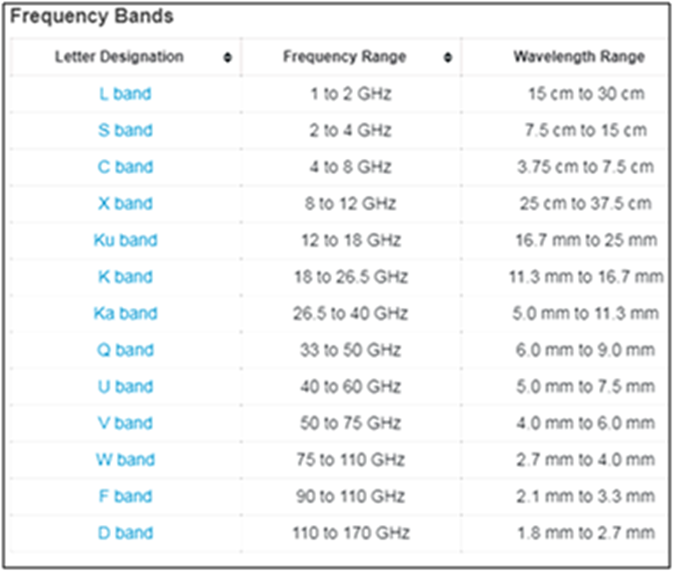

About Frequency Bands

L Band

The L band is the Institute of Electrical and Electronics Engineers (IEEE) designation for the range of frequencies in the radio spectrum from 1 to 2 gigahertz (GHz).

Applications

Advantages of L Band Frequency over other frequency bands:

This frequecy band faces less interference from heavy rain fading
The low frequency range makes it easier to design and source components
The components for this band are less expensive than those for higher frequency bands

S band

The S band is a designation by the Institute of Electrical and Electronics Engineers (IEEE) for a part of the microwave band of the electromagnetic spectrum covering frequencies from 2 to 4 gigahertz (GHz).

Applications

The S band is used by airport surveillance radar for air traffic control, weather radar, surface ship radar, and some communications satellites,especially those used by NASA to communicate with the Space Shuttle and the International Space Station.
The largest use of this band is by WiFi networks.
The S band can also be used for issuing distress signals in accident situations and for delivering real-time data and status for traffic and weather conditions.
In some countries, S band is used for Direct-to-Home satellite television.
IndoStar-1 was the world's first commercial communications satellite to use S-band frequencies for broadcast.

The L1 signal is the oldest GPS signal. It has two parts: the Coarse/Acquisition Code (C/A) and the Precision Code (P-code).
The P-code is reserved for military use, while the C/A is open to the public. The L1 signal uses the frequency 1575.42 MHz.
Since the L1 is the oldest and most established signal, even the cheapest GPS units are capable of receiving it. However, because its frequency is relatively slow it is not very effective at traveling through obstacles.

Where is NavIC being used right now?

NavIC is mainly being used in public vehicle tracking, to provide emergency warning alerts to fishermen venturing into the deep sea, and for tracking data related to natural disasters.
The government is also pushing for its increased use in smartphones.

Significance of NaVIC

Currently, NavIC's use is limited. It is being used in public vehicle tracking in India, for providing emergency warning alerts to fishermen venturing into the deep sea where there is no terrestrial network connectivity, and for tracking and providing information related to natural disasters. Enabling it in smartphones is the next step India is pushing for. NavIC is conceived with the aim of removing dependence on foreign satellite systems for navigation service requirements, particularly for "strategic sectors."
