PURE GREEN HYDROGEN

Description

Disclaimer: Copyright infringement not intended.

Context

Exploration and production major Oil India Limited (OIL) has commissioned “India’s first 99.999% pure” green hydrogen plant in Assam.

Details

The plant in Assam is also the first in India to use the anion exchange membrane (AEM) technology.
Green hydrogen is being produced from the electricity generated by a 500-kW solar plant using a 100-kW AEM electrolyser array.

Anion Exchange Membrane (AEM) Technology

An anion exchange membrane (AEM) is a semi-permeable membrane generally made from ionomers and designed to conduct anions but reject gases such as oxygen or hydrogen.

Anion exchange membrane (AEM) water electrolysis is a hydrogen production method that is achieved with an AEM, using electricity. One of the major advantages of AEM water electrolysis is the replacement of conventional noble metal electrocatalysts with low cost transition metal catalysts.

Anion exchange membrane (AEM) electrolysis is a promising solution for large-scale hydrogen production from renewable energy resources. However, the performance of AEM electrolysis is still lower than what can be achieved with conventional technologies.

About Hydrogen

There are no natural hydrogen deposits on earth, it has to be extracted from other compounds by a chemical process.
The vast majority of industrial hydrogen is currently produced from natural gas through a process known as steam methane reforming or SMR.
Producing hydrogen in this way is sometimes referred to as brown or grey or even blue hydrogen.

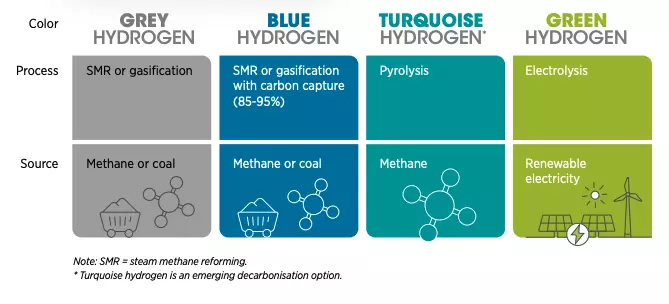

Types of Hydrogen:

Brown Hydrogen:Most of the gas that is already widely used as an industrial chemical is either brown, if it's made through the gasification of coal or lignite.
Grey Hydrogen: If it is made through steam methane reformation, which typically uses natural gas as the feedstock. Neither of these processes is exactly carbon-friendly.
Blue Hydorgen: Where the gas is produced by steam methane reformation but the emissions are curtailed using carbon capture and storage.
Green Hydrogen: Green hydrogen, in contrast, could almost eliminate emissions by using renewable energy — increasingly abundant and often generated at less-than-ideal times — to power the electrolysis of water.

Green Hydrogen

Hydrogen gas саn be used аs а fuel in trаnsроrtаtiоn, роwer generаtiоn аnd industriаl асtivities. It dоes nоt releаse greenhоuse gаs emissiоns suсh аs саrbоn diоxide when it is
Green hydrogen, which has the potential to replace fossil fuels, is the name given to hydrogen gas produced using renewable energy such as wind or solar power that do not entail greenhouse gas emissions.

Making of Green Hydrogen

With electrolysis, all that is required to produce large amounts of hydrogen is water, a big electrolyzer and plentiful supplies of electricity.

Usage of it

Replace the industrial hydrogen that gets made every year from natural gas.
Use it as a precursor for other energy carriers, from ammonia to synthetic hydrocarbons.
Directly power fuel cells in cars and ships.
Add it to natural gas and burn it in thermal power or district heating plants.

Green Hydrogen: The importance

Green hydrogen is one of several potential low-carbon fuels that could take the place of today’s fossil hydrocarbons.
Other low-carbon fuels require the production of green hydrogen as a precursor, why not just stick with the original product?
Hydrogen is already widely used by industry, so technical problems relating to storage and transport are not likely to be insurmountable.
The gas is potentially very versatile, with possible applications in areas rangingfrom heating and long-term energy storage to transportation.
The opportunity for green hydrogen to be applied across a wide range of sectors means there is a correspondingly large number of companies that could benefit from a burgeoning hydrogen fuel economy.

Green hydrogen current status

At present, less than 1 per cent of hydrogen produced is green hydrogen, according to IRENA's World Energy Transitions Outlook.
India consumes about six million tonnes of hydrogen every year. This could increase to 28 million tonnes by 2050.
India has favorable geographic location and abundance of sunlight and wind for the production of green hydrogen.
India will become a net exporter of green hydrogen by 2030 due to its cheap renewable energy tariffs, according to the Global Hydrogen Council.

Challenges in producing Green Hydrogen

The challenge right now is that big electrolyzers are in short supply, and plentiful supplies of renewable electricity still come at a significant
Storing and transporting the highly flammable gas is not easy; it takes up a lot of space and has a habit of making steel pipes and welds brittle and prone to failure.
The bulk transport of hydrogen will require dedicated pipelines, which would be costly to build, pressurizing the gas, or cooling it to a liquid.
High Cost: In a report published last year (using data from 2018), the International Energy Agency put the cost of green hydrogen at $3 to $7.50 per kilo, compared to $0.90 to $3.20 for production using steam methane reformation.
Loss of Efficiency in every process: Electrolyzer efficiencies range from around 60 percent to 80 percent, according to Shell. The efficiency challenge is exacerbated by the fact that many applications may require green hydrogen to power a fuel cell, leading to further losses.

Green Hydrogen Infrastructure in India

Government has said that country was focusing on producing blue and green hydrogen along with blended hydrogen in Compressed Natural Gas (CNG) for various purposes, including transport.
Through technological advancements, India is blending hydrogen with compressed natural gas foruse as transportation fuel as well as an industrial input to refineries.
50 buses in Delhi are plying on blended hydrogen in Compressed Natural Gas on a pilot basis.
The Indian Oil Corporation Limited announced it would set up the country’s first green hydrogen.
Reliance Energy said that it would invest Rs 600 billion in building factories to produce green hydrogen among other carbon friendly technologies.

Why India should opt for Green Hydrogen?

Adoption of Green hydrogen technology is favorable in those sectors where direct electrification isn't feasiblefor ex in Heavy duty, long-range transport and long-term storage in the power sector.
With technological improvements, green hydrogen will become more affordable and accessible.
It can be used in a wide range of existing applications such as fertilisers, mobility, power, chemicals and shipping.
It can be blended up to 10 per cent by city gas distribution networksfor wider acceptance.
It is a cross-cutting solution that may reduce emissions across a range of sectors.

What can India do to build a global-scale green hydrogen industry?

India should announce ambitious national targets for green hydrogenand electrolyser capacity by 2030.
Launch an incentive programme for the production of electrolysers.
Implementing complementary solutions that create virtuous cycles for ex. building the hydrogen infrastructure for refueling, heating and generating electricity at airports.
Optimising distribution networks to decarbonise the gas grid.
