REGENERATIVE BRAKING
Source: Hindu
Disclaimer: Copyright infringement not intended.
Context
- Recent efforts to lower emissions focus on reducing consumption and changing consumer habits.
- Electric vehicles (EVs), supported by government incentives, play a key role.
- Regenerative braking in EVs improves energy efficiency, promoting sustainable transportation.
Details
What is Braking?
- Braking is the mechanism by which a vehicle reduces its speed or comes to a stop.
Types of Brakes
Mechanical Brakes
- Disc Brakes:
- Consist of brake pads pressing against a disc attached to wheels.
- Friction converts kinetic energy into heat.
- Holes in discs aid heat dissipation.
- Drum Brakes:
- Brake shoes press against the inner surface of a drum attached to wheels.
- Friction slows down wheels through heat generation.
Electromagnetic Brakes
- Induction Brakes:
- Often used in trains.
- Magnets induce electric currents in a conducting wheel.
- Currents create a magnetic field that opposes the magnet’s field, slowing down the wheel.
- Energy dissipated as heat due to resistance in the conductor.
Importance of Braking
- Vehicle Control:Enables safe speed adjustment and stopping.
- Safety:Prevents accidents by reducing speed effectively.
- Energy Management:Converts kinetic energy into heat or electrical resistance.

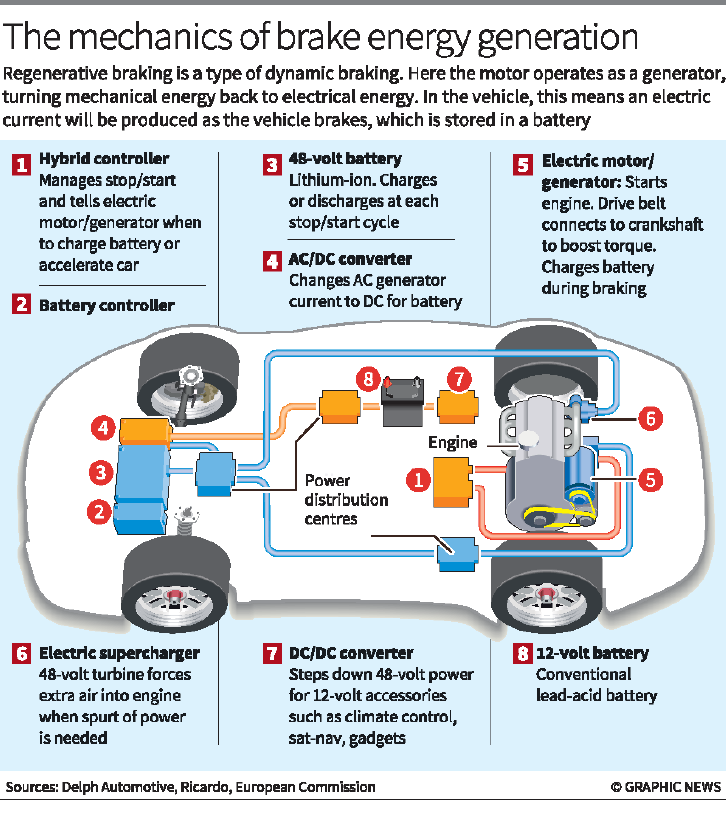

Regenerative Braking
- Regenerative braking is a system in electric and hybrid vehicles designed to convert the kinetic energy of the wheels into electrical energy, which is then stored in the vehicle’s battery.
- This system operates by using the electric motor as a generator during deceleration, thus reversing the motor's function.
Working Principle:
- Deceleration Detection: When the driver lifts off the accelerator or applies the brakes, the system detects the need to slow down.
- Motor as Generator: The traction motor switches from driving mode to generating mode.
- Energy Conversion: The kinetic energy from the moving vehicle is converted into electrical energy by the motor.
- Energy Storage: The electrical energy generated is stored in the vehicle's battery for later use.
Benefits:
- Energy Efficiency: Recovers energy that would otherwise be lost as heat in conventional braking.
- Extended Range: Increases the driving range of electric vehicles by reusing captured energy.
- Reduced Brake Wear: Decreases wear and tear on conventional brake components, leading to lower maintenance costs.
- Environmental Impact: Reduces emissions by improving energy use efficiency.
Downsides of Regenerative Braking:
- Not Sufficient for Complete Stops: Requires conventional brakes for complete halting.
- Limited Effectiveness at Low Speeds: Less kinetic energy available to convert into electrical energy.
- Brake Feel: Can differ from conventional brakes, potentially affecting driver comfort.
- Additional System Requirements: Needs integration with conventional braking systems to ensure safety and performance​​.
Comparison of Braking Systems
Feature |
Regenerative Braking |
Conventional Braking |
Engine Braking |
Mechanism |
Converts kinetic energy to electrical energy, storing it in the battery |
Uses friction to convert kinetic energy to heat |
Utilizes engine compression to slow down the vehicle |
Primary Use |
Electric and hybrid vehicles |
All types of vehicles |
Primarily manual transmission vehicles |
Energy Efficiency |
High, recovers and reuses energy |
Low, energy lost as heat |
Moderate, uses engine’s internal resistance |
Impact on Fuel/Energy Consumption |
Reduces energy/fuel consumption by reusing captured energy |
No significant impact on energy/fuel consumption |
Reduces fuel injection during deceleration, saving fuel |
Brake Wear and Tear |
Reduces wear on friction brake components |
High wear on brake pads and discs |
Minimal impact on brake components |
Performance at High Speeds |
Less effective, may not capture all energy |
Effective |
Effective |
Performance on Slippery Surfaces |
Less effective due to reduced traction |
Effective |
Effective |
Battery Dependency |
Dependent on battery capacity; ineffective if battery is full |
Not dependent on battery |
Not dependent on battery |
Maintenance Cost |
Lower due to reduced brake wear |
Higher due to frequent replacement of brake pads and discs |
Lower, primarily engine maintenance |
Complexity |
High, requires integration with vehicle’s electrical system |
Low, straightforward mechanical system |
Moderate, depends on engine design |
Environmental Impact |
Positive, reduces emissions by improving energy efficiency |
Neutral/Negative, no recovery of kinetic energy |
Positive, reduces fuel usage during deceleration |
Driver Experience |
Different pedal feel; can require adjustment |
Familiar feel for most drivers |
Different pedal feel; requires adjustment, especially in automatics |
Other Energy Recovery Systems
- Flywheels: Stores kinetic energy by increasing angular momentum, useful in high-performance applications.
- Compressed Air: Uses recovered energy to compress air, which can start internal combustion engines.
